docs/config.md

@@ -1111,16 +1111,26 @@ doing, and/or secure access to the endpoint in your reverse proxy.
 - `metrics-listen-http` exposes the metrics endpoint via a dedicated `[IP]:port`. If set, this option implicitly
   enables metrics as well, e.g. "10.0.1.1:9090" or ":9090"

-=== "Using default port"
+=== "server.yml (Using default port)"
     ```yaml
     enable-metrics: true
     ```

-=== "Using dedicated IP/port"
+=== "server.yml (Using dedicated IP/port)"
     ```yaml
     metrics-listen-http: "10.0.1.1:9090"
     ```

+In Prometheus, an example scrape config would look like this:
+
+=== "prometheus.yml"
+    ```yaml
+    scrape_configs:
+      - job_name: "ntfy"
+        static_configs:
+          - targets: ["10.0.1.1:9090"]
+    ```
+
 Here's an example Grafana dashboard built from the metrics (see [Grafana JSON on GitHub](https://raw.githubusercontent.com/binwiederhier/ntfy/main/examples/grafana-dashboard/ntfy-grafana.json)):

 <figure markdown style="padding-left: 50px; padding-right: 50px">

docs/integrations.md

@@ -116,6 +116,7 @@ and uptime of third party servers, so use of each server is **at your own discre
 - [nodebb-plugin-ntfy](https://github.com/NodeBB/nodebb-plugin-ntfy) - Push notifications for NodeBB forums
 - [n8n-ntfy](https://github.com/raghavanand98/n8n-ntfy.sh) - n8n community node that lets you use ntfy in your workflows
 - [nlog-ntfy](https://github.com/MichelMichels/nlog-ntfy) - Send NLog messages over ntfy (C# / .NET / NLog)
+- [helm-charts](https://github.com/sarab97/helm-charts) - Helm charts of some of the selfhosted services, incl. ntfy

 ## Blog + forum posts


docs/troubleshooting.md

@@ -0,0 +1,113 @@
+# Troubleshooting
+This page lists a few suggestions of what to do when things don't work as expected. This is not a complete list.
+If this page does not help, feel free to drop by the [Discord](https://discord.gg/cT7ECsZj9w) or [Matrix](https://matrix.to/#/#ntfy:matrix.org)
+and ask there. We're happy to help.
+
+## ntfy server
+If you host your own ntfy server, and you're having issues with any component, it is always helpful to enable debugging/tracing
+in the server. You can find detailed instructions in the [Logging & Debugging](config.md#logging-debugging) section, but it ultimately
+boils down to setting `log-level: debug` or `log-level: trace` in the `server.yml` file:
+
+=== "server.yml (debug)"
+    ``` yaml
+    log-level: debug
+    ```
+
+=== "server.yml (trace)"
+    ``` yaml
+    log-level: trace
+    ```
+
+If you're using environment variables, set `NTFY_LOG_LEVEL=debug` (or `trace`) instead. You can also pass `--debug` or `--trace`
+to the `ntfy serve` command, e.g. `ntfy serve --trace`. If you're using systemd (i.e. `systemctl`) to run ntfy, you can look at the logs using `journalctl -u ntfy -f`.
+
+Assuming trace is enabled, the logs will look something like this:
+
+=== "Example logs (debug)"
+    ```
+    $ ntfy serve --debug
+    2023/03/20 14:45:38 INFO Listening on :2586[http] :1025[smtp], ntfy 2.1.2, log level is DEBUG (tag=startup)
+    2023/03/20 14:45:38 DEBUG Waiting until 2023-03-21 00:00:00 +0000 UTC to reset visitor stats (tag=resetter)
+    2023/03/20 14:45:39 DEBUG Rate limiters reset for visitor (visitor_auth_limiter_limit=0.016666666666666666, visitor_auth_limiter_tokens=10, visitor_emails=0, visitor_emails_limit=12, visitor_emails_remaining=12, visitor_id=ip:127.0.0.1, visitor_ip=127.0.0.1, visitor_messages=0, visitor_messages_limit=500, visitor_messages_remaining=500, visitor_request_limiter_limit=0.2, visitor_request_limiter_tokens=60, visitor_seen=2023-03-20T14:45:39.7-04:00)
+    2023/03/20 14:45:39 DEBUG HTTP request started (http_method=POST, http_path=/mytopic, tag=http, visitor_auth_limiter_limit=0.016666666666666666, visitor_auth_limiter_tokens=10, visitor_emails=0, visitor_emails_limit=12, visitor_emails_remaining=12, visitor_id=ip:127.0.0.1, visitor_ip=127.0.0.1, visitor_messages=0, visitor_messages_limit=500, visitor_messages_remaining=500, visitor_request_limiter_limit=0.2, visitor_request_limiter_tokens=60, visitor_seen=2023-03-20T14:45:39.7-04:00)
+    2023/03/20 14:45:39 DEBUG Received message (http_method=POST, http_path=/mytopic, message_body_size=2, message_delayed=false, message_email=, message_event=message, message_firebase=true, message_id=EZu6i2WZjH0v, message_sender=127.0.0.1, message_time=1679337939, message_unifiedpush=false, tag=publish, topic=mytopic, topic_last_access=2023-03-20T14:45:38.319-04:00, topic_subscribers=0, visitor_auth_limiter_limit=0.016666666666666666, visitor_auth_limiter_tokens=10, visitor_emails=0, visitor_emails_limit=12, visitor_emails_remaining=12, visitor_id=ip:127.0.0.1, visitor_ip=127.0.0.1, visitor_messages=1, visitor_messages_limit=500, visitor_messages_remaining=499, visitor_request_limiter_limit=0.2, visitor_request_limiter_tokens=59.0002132248, visitor_seen=2023-03-20T14:45:39.7-04:00)
+    2023/03/20 14:45:39 DEBUG Adding message to cache (http_method=POST, http_path=/mytopic, message_body_size=2, message_event=message, message_id=EZu6i2WZjH0v, message_sender=127.0.0.1, message_time=1679337939, tag=publish, topic=mytopic, visitor_auth_limiter_limit=0.016666666666666666, visitor_auth_limiter_tokens=10, visitor_emails=0, visitor_emails_limit=12, visitor_emails_remaining=12, visitor_id=ip:127.0.0.1, visitor_ip=127.0.0.1, visitor_messages=1, visitor_messages_limit=500, visitor_messages_remaining=499, visitor_request_limiter_limit=0.2, visitor_request_limiter_tokens=59.000259165, visitor_seen=2023-03-20T14:45:39.7-04:00)
+    2023/03/20 14:45:39 DEBUG HTTP request finished (http_method=POST, http_path=/mytopic, tag=http, time_taken_ms=2, visitor_auth_limiter_limit=0.016666666666666666, visitor_auth_limiter_tokens=10, visitor_emails=0, visitor_emails_limit=12, visitor_emails_remaining=12, visitor_id=ip:127.0.0.1, visitor_ip=127.0.0.1, visitor_messages=1, visitor_messages_limit=500, visitor_messages_remaining=499, visitor_request_limiter_limit=0.2, visitor_request_limiter_tokens=59.0004147334, visitor_seen=2023-03-20T14:45:39.7-04:00)
+    2023/03/20 14:45:39 DEBUG Wrote 1 message(s) in 8.285712ms (tag=message_cache)
+    ...
+    ```
+
+=== "Example logs (trace)"
+    ```
+    $ ntfy serve --trace
+    2023/03/20 14:40:42 INFO Listening on :2586[http] :1025[smtp], ntfy 2.1.2, log level is TRACE (tag=startup)
+    2023/03/20 14:40:42 DEBUG Waiting until 2023-03-21 00:00:00 +0000 UTC to reset visitor stats (tag=resetter)
+    2023/03/20 14:40:59 DEBUG Rate limiters reset for visitor (visitor_auth_limiter_limit=0.016666666666666666, visitor_auth_limiter_tokens=10, visitor_emails=0, visitor_emails_limit=12, visitor_emails_remaining=12, visitor_id=ip:127.0.0.1, visitor_ip=127.0.0.1, visitor_messages=0, visitor_messages_limit=500, visitor_messages_remaining=500, visitor_request_limiter_limit=0.2, visitor_request_limiter_tokens=60, visitor_seen=2023-03-20T14:40:59.893-04:00)
+    2023/03/20 14:40:59 TRACE HTTP request started (http_method=POST, http_path=/mytopic, http_request=POST /mytopic HTTP/1.1
+    User-Agent: curl/7.81.0
+    Accept: */*
+    Content-Length: 2
+    Content-Type: application/x-www-form-urlencoded
+
+    hi, tag=http, visitor_auth_limiter_limit=0.016666666666666666, visitor_auth_limiter_tokens=10, visitor_emails=0, visitor_emails_limit=12, visitor_emails_remaining=12, visitor_id=ip:127.0.0.1, visitor_ip=127.0.0.1, visitor_messages=0, visitor_messages_limit=500, visitor_messages_remaining=500, visitor_request_limiter_limit=0.2, visitor_request_limiter_tokens=60, visitor_seen=2023-03-20T14:40:59.893-04:00)
+    2023/03/20 14:40:59 TRACE Received message (http_method=POST, http_path=/mytopic, message_body={
+      "id": "Khaup1RVclU3",
+      "time": 1679337659,
+      "expires": 1679380859,
+      "event": "message",
+      "topic": "mytopic",
+      "message": "hi"
+    }, message_body_size=2, message_delayed=false, message_email=, message_event=message, message_firebase=true, message_id=Khaup1RVclU3, message_sender=127.0.0.1, message_time=1679337659, message_unifiedpush=false, tag=publish, topic=mytopic, topic_last_access=2023-03-20T14:40:59.893-04:00, topic_subscribers=0, visitor_auth_limiter_limit=0.016666666666666666, visitor_auth_limiter_tokens=10, visitor_emails=0, visitor_emails_limit=12, visitor_emails_remaining=12, visitor_id=ip:127.0.0.1, visitor_ip=127.0.0.1, visitor_messages=1, visitor_messages_limit=500, visitor_messages_remaining=499, visitor_request_limiter_limit=0.2, visitor_request_limiter_tokens=59.0001785048, visitor_seen=2023-03-20T14:40:59.893-04:00)
+    2023/03/20 14:40:59 DEBUG Adding message to cache (http_method=POST, http_path=/mytopic, message_body_size=2, message_event=message, message_id=Khaup1RVclU3, message_sender=127.0.0.1, message_time=1679337659, tag=publish, topic=mytopic, visitor_auth_limiter_limit=0.016666666666666666, visitor_auth_limiter_tokens=10, visitor_emails=0, visitor_emails_limit=12, visitor_emails_remaining=12, visitor_id=ip:127.0.0.1, visitor_ip=127.0.0.1, visitor_messages=1, visitor_messages_limit=500, visitor_messages_remaining=499, visitor_request_limiter_limit=0.2, visitor_request_limiter_tokens=59.0002044368, visitor_seen=2023-03-20T14:40:59.893-04:00)
+    2023/03/20 14:40:59 DEBUG HTTP request finished (http_method=POST, http_path=/mytopic, tag=http, time_taken_ms=1, visitor_auth_limiter_limit=0.016666666666666666, visitor_auth_limiter_tokens=10, visitor_emails=0, visitor_emails_limit=12, visitor_emails_remaining=12, visitor_id=ip:127.0.0.1, visitor_ip=127.0.0.1, visitor_messages=1, visitor_messages_limit=500, visitor_messages_remaining=499, visitor_request_limiter_limit=0.2, visitor_request_limiter_tokens=59.000220502, visitor_seen=2023-03-20T14:40:59.893-04:00)
+    2023/03/20 14:40:59 TRACE No stream or WebSocket subscribers, not forwarding (message_body_size=2, message_event=message, message_id=Khaup1RVclU3, message_sender=127.0.0.1, message_time=1679337659, tag=publish, topic=mytopic, visitor_auth_limiter_limit=0.016666666666666666, visitor_auth_limiter_tokens=10, visitor_emails=0, visitor_emails_limit=12, visitor_emails_remaining=12, visitor_id=ip:127.0.0.1, visitor_ip=127.0.0.1, visitor_messages=1, visitor_messages_limit=500, visitor_messages_remaining=499, visitor_request_limiter_limit=0.2, visitor_request_limiter_tokens=59.0002369212, visitor_seen=2023-03-20T14:40:59.893-04:00)
+    2023/03/20 14:41:00 DEBUG Wrote 1 message(s) in 9.529196ms (tag=message_cache)
+    ...
+    ```
+
+## Android app
+On Android, you can turn on logging in the settings under **Settings → Record logs**. This will store up to 1,000 log
+entries, which you can then copy or upload.
+
+<figure markdown>
+  ![Recording logs on Android](static/img/android-screenshot-logs.jpg){ width=400 }
+  <figcaption>Recording logs on Android</figcaption>
+</figure>
+
+When you copy or upload the logs, you can censor them to make it easier to share them with others. ntfy will replace all
+topics and hostnames with fruits. Here's an example:
+
+=== "Android log (censored)"
+    ```
+    This is a log of the ntfy Android app. The log shows up to 1,000 entries.
+    Server URLs (aside from ntfy.sh) and topics have been replaced with fruits 🍌🥝🍋🥥🥑🍊🍎🍑.
+
+    Device info:
+    --
+    ntfy: 1.16.0 (play)
+    OS: 4.19.157-perf+
+    Android: 13 (SDK 33)
+    ...
+
+    Logs
+    --
+
+    1679339199507 2023-03-20 15:06:39.507 D NtfyMainActivity Battery: ignoring optimizations = true (we want this to be true); instant subscriptions = true; remind time reached = true; banner = false
+    1679339199507 2023-03-20 15:06:39.507 D NtfySubscriberMgr Enqueuing work to refresh subscriber service
+    1679339199589 2023-03-20 15:06:39.589 D NtfySubscriberMgr ServiceStartWorker: Starting foreground service with action START (work ID: a7eeeae9-9356-40df-afbd-236e5ed10a0b)
+    1679339199602 2023-03-20 15:06:39.602 D NtfySubscriberService onStartCommand executed with startId: 262
+    1679339199602 2023-03-20 15:06:39.602 D NtfySubscriberService using an intent with action START
+    1679339199629 2023-03-20 15:06:39.629 D NtfySubscriberService Refreshing subscriptions
+    1679339199629 2023-03-20 15:06:39.629 D NtfySubscriberService - Desired connections: [ConnectionId(baseUrl=https://ntfy.sh, topicsToSubscriptionIds={avocado=23801492, lemon=49013182, banana=1309176509201171073, peach=573300885184666424, pineapple=-5956897229801209316, durian=81453333, starfruit=30489279, fruit12=82532869}), ConnectionId(baseUrl=https://orange.example.com, topicsToSubscriptionIds={apple=4971265, dragonfruit=66809328})]
+    1679339199629 2023-03-20 15:06:39.629 D NtfySubscriberService - Active connections: [ConnectionId(baseUrl=https://orange.example.com, topicsToSubscriptionIds={apple=4971265, dragonfruit=66809328}), ConnectionId(baseUrl=https://ntfy.sh, topicsToSubscriptionIds={avocado=23801492, lemon=49013182, banana=1309176509201171073, peach=573300885184666424, pineapple=-5956897229801209316, durian=81453333, starfruit=30489279, fruit12=82532869})]
+    ...
+    ```
+
+## Web app

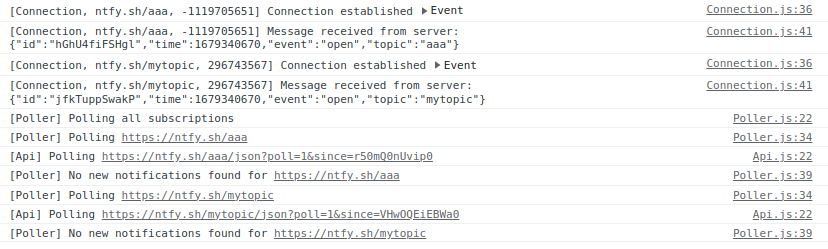

+The web app logs everything to the **developer console**, which you can open by **pressing the F12 key** on your
+keyboard.
+
+<figure markdown>
+  ![Web app logs](static/img/web-logs.png)
+  <figcaption>Web app logs in the developer console</figcaption>
+</figure>

examples/grafana-dashboard/ntfy-grafana.json

@@ -129,8 +129,8 @@
             "type": "prometheus",
             "uid": "${DS_PROMETHEUS}"
           },
-          "editorMode": "builder",
-          "expr": "ntfy_messages_published_success",
+          "editorMode": "code",
+          "expr": "ntfy_messages_published_success{job=\"$job\"}",
           "legendFormat": "Messages cached",
           "range": true,
           "refId": "A"
@@ -191,7 +191,7 @@
             "uid": "${DS_PROMETHEUS}"
           },
           "editorMode": "builder",
-          "expr": "ntfy_messages_cached_total",
+          "expr": "ntfy_messages_cached_total{job=\"$job\"}",
           "legendFormat": "Messages cached",
           "range": true,
           "refId": "A"
@@ -252,7 +252,7 @@
             "uid": "${DS_PROMETHEUS}"
           },
           "editorMode": "builder",
-          "expr": "ntfy_visitors_total",
+          "expr": "ntfy_visitors_total{job=\"$job\"}",
           "legendFormat": "Visitors",
           "range": true,
           "refId": "A"
@@ -318,7 +318,7 @@
             "uid": "${DS_PROMETHEUS}"
           },
           "editorMode": "builder",
-          "expr": "ntfy_users_total",
+          "expr": "ntfy_users_total{job=\"$job\"}",
           "legendFormat": "Visitors",
           "range": true,
           "refId": "A"
@@ -380,7 +380,7 @@
             "uid": "${DS_PROMETHEUS}"
           },
           "editorMode": "builder",
-          "expr": "ntfy_topics_total",
+          "expr": "ntfy_topics_total{job=\"$job\"}",
           "legendFormat": "Topics",
           "range": true,
           "refId": "A"
@@ -467,6 +467,7 @@
         "type": "prometheus",
         "uid": "${DS_PROMETHEUS}"
       },
+      "description": "Number of successfully published messages, and messages that could not be published (due to rate limiting, bad formatting, etc.)",
       "fieldConfig": {
         "defaults": {
           "color": {
@@ -509,15 +510,31 @@
               {
                 "color": "green",
                 "value": null
+              }
+            ]
+          }
+        },
+        "overrides": [
+          {
+            "matcher": {
+              "id": "byName",
+              "options": "Failed"
+            },
+            "properties": [
+              {
+                "id": "custom.axisColorMode",
+                "value": "text"
               },
               {
-                "color": "red",
-                "value": 80
+                "id": "color",
+                "value": {
+                  "fixedColor": "red",
+                  "mode": "fixed"
+                }
               }
             ]
           }
-        },
-        "overrides": []
+        ]
       },
       "gridPos": {
         "h": 7,
@@ -525,7 +542,7 @@
         "x": 0,
         "y": 5
       },
-      "id": 14,
+      "id": 42,
       "options": {
         "legend": {
           "calcs": [],
@@ -544,9 +561,9 @@
             "type": "prometheus",
             "uid": "${DS_PROMETHEUS}"
           },
-          "editorMode": "builder",
-          "expr": "ntfy_visitors_total",
-          "legendFormat": "Visitors",
+          "editorMode": "code",
+          "expr": "rate(ntfy_messages_published_success{job=\"$job\"}[$rate])",
+          "legendFormat": "Success",
           "range": true,
           "refId": "A"
         },
@@ -555,39 +572,15 @@
             "type": "prometheus",
             "uid": "${DS_PROMETHEUS}"
           },
-          "editorMode": "builder",
-          "expr": "ntfy_topics_total",
+          "editorMode": "code",
+          "expr": "rate(ntfy_messages_published_failure{job=\"$job\"}[$rate])",
           "hide": false,
-          "legendFormat": "Topics",
+          "legendFormat": "Failed",
           "range": true,
           "refId": "B"
-        },
-        {
-          "datasource": {
-            "type": "prometheus",
-            "uid": "${DS_PROMETHEUS}"
-          },
-          "editorMode": "builder",
-          "expr": "ntfy_subscribers_total",
-          "hide": false,
-          "legendFormat": "Subscribers",
-          "range": true,
-          "refId": "C"
-        },
-        {
-          "datasource": {
-            "type": "prometheus",
-            "uid": "${DS_PROMETHEUS}"
-          },
-          "editorMode": "builder",
-          "expr": "ntfy_users_total",
-          "hide": false,
-          "legendFormat": "Users",
-          "range": true,
-          "refId": "D"
         }
       ],
-      "title": "Visitors, subscribers, topics",
+      "title": "Messages published (per second)",
       "type": "timeseries"
     },
     {
@@ -595,7 +588,7 @@
         "type": "prometheus",
         "uid": "${DS_PROMETHEUS}"
       },
-      "description": "Number of messages published since last ntfy server restrart",
+      "description": "Number of messages published since last ntfy server restart",
       "fieldConfig": {
         "defaults": {
           "color": {
@@ -646,7 +639,23 @@
             ]
           }
         },
-        "overrides": []
+        "overrides": [
+          {
+            "matcher": {
+              "id": "byName",
+              "options": "Failed"
+            },
+            "properties": [
+              {
+                "id": "color",
+                "value": {
+                  "fixedColor": "red",
+                  "mode": "fixed"
+                }
+              }
+            ]
+          }
+        ]
       },
       "gridPos": {
         "h": 7,
@@ -674,7 +683,7 @@
             "uid": "${DS_PROMETHEUS}"
           },
           "editorMode": "builder",
-          "expr": "ntfy_messages_published_success",
+          "expr": "ntfy_messages_published_success{job=\"$job\"}",
           "legendFormat": "Successful",
           "range": true,
           "refId": "A"
@@ -685,7 +694,7 @@
             "uid": "${DS_PROMETHEUS}"
           },
           "editorMode": "builder",
-          "expr": "ntfy_messages_published_failure",
+          "expr": "ntfy_messages_published_failure{job=\"$job\"}",
           "hide": false,
           "legendFormat": "Failed",
           "range": true,
@@ -700,6 +709,7 @@
         "type": "prometheus",
         "uid": "${DS_PROMETHEUS}"
       },
+      "description": "Number of messages currently stored in message cache",
       "fieldConfig": {
         "defaults": {
           "color": {
@@ -758,7 +768,7 @@
         "x": 12,
         "y": 5
       },
-      "id": 42,
+      "id": 2,
       "options": {
         "legend": {
           "calcs": [],
@@ -778,25 +788,13 @@
             "uid": "${DS_PROMETHEUS}"
           },
           "editorMode": "builder",
-          "expr": "rate(ntfy_messages_published_success[10m])",
-          "legendFormat": "Successful",
+          "expr": "ntfy_messages_cached_total{job=\"$job\"}",
+          "legendFormat": "Messages in database",
           "range": true,
           "refId": "A"
-        },
-        {
-          "datasource": {
-            "type": "prometheus",
-            "uid": "${DS_PROMETHEUS}"
-          },
-          "editorMode": "builder",
-          "expr": "rate(ntfy_messages_published_failure[10m])",
-          "hide": false,
-          "legendFormat": "Failed",
-          "range": true,
-          "refId": "B"
         }
       ],
-      "title": "Messages published (per second)",
+      "title": "Messages cached",
       "type": "timeseries"
     },
     {
@@ -804,7 +802,6 @@
         "type": "prometheus",
         "uid": "${DS_PROMETHEUS}"
       },
-      "description": "",
       "fieldConfig": {
         "defaults": {
           "color": {
@@ -863,7 +860,7 @@
         "x": 18,
         "y": 5
       },
-      "id": 2,
+      "id": 14,
       "options": {
         "legend": {
           "calcs": [],
@@ -883,105 +880,49 @@
             "uid": "${DS_PROMETHEUS}"
           },
           "editorMode": "builder",
-          "expr": "ntfy_messages_cached_total",
-          "legendFormat": "Messages in database",
+          "expr": "ntfy_visitors_total{job=\"$job\"}",
+          "legendFormat": "Visitors",
           "range": true,
           "refId": "A"
-        }
-      ],
-      "title": "Messages cached",
-      "type": "timeseries"
-    },
-    {
-      "datasource": {
-        "type": "prometheus",
-        "uid": "${DS_PROMETHEUS}"
-      },
-      "fieldConfig": {
-        "defaults": {
-          "color": {
-            "mode": "palette-classic"
-          },
-          "custom": {
-            "axisCenteredZero": false,
-            "axisColorMode": "text",
-            "axisLabel": "",
-            "axisPlacement": "auto",
-            "barAlignment": 0,
-            "drawStyle": "line",
-            "fillOpacity": 0,
-            "gradientMode": "none",
-            "hideFrom": {
-              "legend": false,
-              "tooltip": false,
-              "viz": false
-            },
-            "lineInterpolation": "linear",
-            "lineWidth": 1,
-            "pointSize": 5,
-            "scaleDistribution": {
-              "type": "linear"
-            },
-            "showPoints": "auto",
-            "spanNulls": false,
-            "stacking": {
-              "group": "A",
-              "mode": "none"
-            },
-            "thresholdsStyle": {
-              "mode": "off"
-            }
+        },
+        {
+          "datasource": {
+            "type": "prometheus",
+            "uid": "${DS_PROMETHEUS}"
           },
-          "mappings": [],
-          "thresholds": {
-            "mode": "absolute",
-            "steps": [
-              {
-                "color": "green",
-                "value": null
-              },
-              {
-                "color": "red",
-                "value": 80
-              }
-            ]
-          }
+          "editorMode": "builder",
+          "expr": "ntfy_topics_total{job=\"$job\"}",
+          "hide": false,
+          "legendFormat": "Topics",
+          "range": true,
+          "refId": "B"
         },
-        "overrides": []
-      },
-      "gridPos": {
-        "h": 7,
-        "w": 6,
-        "x": 0,
-        "y": 12
-      },
-      "id": 43,
-      "options": {
-        "legend": {
-          "calcs": [],
-          "displayMode": "list",
-          "placement": "bottom",
-          "showLegend": true
+        {
+          "datasource": {
+            "type": "prometheus",
+            "uid": "${DS_PROMETHEUS}"
+          },
+          "editorMode": "builder",
+          "expr": "ntfy_subscribers_total{job=\"$job\"}",
+          "hide": false,
+          "legendFormat": "Subscribers",
+          "range": true,
+          "refId": "C"
         },
-        "tooltip": {
-          "mode": "single",
-          "sort": "none"
-        }
-      },
-      "targets": [
         {
           "datasource": {
             "type": "prometheus",
             "uid": "${DS_PROMETHEUS}"
           },
           "editorMode": "builder",
-          "expr": "sum by(job) (rate(ntfy_http_requests_total[10m]))",
-          "legendFormat": "Requests per second",
+          "expr": "ntfy_users_total{job=\"$job\"}",
+          "hide": false,
+          "legendFormat": "Users",
           "range": true,
-          "refId": "A"
+          "refId": "D"
         }
       ],
-      "title": "HTTP requests (per second)",
+      "title": "Visitors, subscribers, topics",
       "type": "timeseries"
     },
     {
@@ -1044,10 +985,10 @@
       "gridPos": {
         "h": 7,
         "w": 6,
-        "x": 6,
+        "x": 0,
         "y": 12
       },
-      "id": 18,
+      "id": 43,
       "options": {
         "legend": {
           "calcs": [],
@@ -1066,14 +1007,14 @@
             "type": "prometheus",
             "uid": "${DS_PROMETHEUS}"
           },
-          "editorMode": "builder",
-          "expr": "sum by(http_code) (ntfy_http_requests_total{http_code=\"200\"})",
-          "legendFormat": "{{http_code}}",
+          "editorMode": "code",
+          "expr": "sum by(job) (rate(ntfy_http_requests_total{job=\"$job\"}[$rate]))",
+          "legendFormat": "Requests per second",
           "range": true,
           "refId": "A"
         }
       ],
-      "title": "HTTP requests (success only)",
+      "title": "HTTP requests (per second)",
       "type": "timeseries"
     },
     {
@@ -1135,17 +1076,21 @@
       },
       "gridPos": {
         "h": 7,
-        "w": 6,
-        "x": 12,
+        "w": 9,
+        "x": 6,
         "y": 12
       },
       "id": 41,
       "options": {
         "legend": {
-          "calcs": [],
-          "displayMode": "list",
-          "placement": "bottom",
-          "showLegend": true
+          "calcs": [
+            "mean"
+          ],
+          "displayMode": "table",
+          "placement": "right",
+          "showLegend": true,
+          "sortBy": "Mean",
+          "sortDesc": true
         },
         "tooltip": {
           "mode": "single",
@@ -1158,14 +1103,14 @@
             "type": "prometheus",
             "uid": "${DS_PROMETHEUS}"
           },
-          "editorMode": "builder",
-          "expr": "sum by(http_code) (ntfy_http_requests_total{http_code!=\"200\"})",
+          "editorMode": "code",
+          "expr": "sum by(http_code) (rate(ntfy_http_requests_total{job=\"$job\", http_code!=\"200\", http_code!=\"429\", http_code!=\"507\"}[$rate]))",
           "legendFormat": "{{http_code}}",
           "range": true,
           "refId": "A"
         }
       ],
-      "title": "HTTP requests (error only)",
+      "title": "HTTP errors (per second, excl. 429/507)",
       "type": "timeseries"
     },
     {
@@ -1227,17 +1172,21 @@
       },
       "gridPos": {
         "h": 7,
-        "w": 6,
-        "x": 18,
+        "w": 9,
+        "x": 15,
         "y": 12
       },
       "id": 16,
       "options": {
         "legend": {
-          "calcs": [],
-          "displayMode": "list",
-          "placement": "bottom",
-          "showLegend": true
+          "calcs": [
+            "mean"
+          ],
+          "displayMode": "table",
+          "placement": "right",
+          "showLegend": true,
+          "sortBy": "Mean",
+          "sortDesc": true
         },
         "tooltip": {
           "mode": "single",
@@ -1250,14 +1199,14 @@
             "type": "prometheus",
             "uid": "${DS_PROMETHEUS}"
           },
-          "editorMode": "builder",
-          "expr": "sum by(ntfy_code) (ntfy_http_requests_total{http_code!=\"200\"})",
+          "editorMode": "code",
+          "expr": "sum by(ntfy_code) (rate(ntfy_http_requests_total{http_code!=\"200\", job=\"$job\"}[$rate]))",
           "legendFormat": "{{http_method}} {{http_code}} {{ntfy_code}}",
           "range": true,
           "refId": "A"
         }
       ],
-      "title": "HTTP requests (error only, ntfy code)",
+      "title": "HTTP errors (per second, ntfy code)",
       "type": "timeseries"
     },
     {
@@ -1344,7 +1293,7 @@
             "uid": "${DS_PROMETHEUS}"
           },
           "editorMode": "builder",
-          "expr": "ntfy_attachments_total_size",
+          "expr": "ntfy_attachments_total_size{job=\"$job\"}",
           "legendFormat": "Total size in MB",
           "range": true,
           "refId": "A"
@@ -1369,7 +1318,7 @@
             "axisColorMode": "text",
             "axisLabel": "",
             "axisPlacement": "auto",
-            "barAlignment": 0,
+            "barAlignment": -1,
             "drawStyle": "line",
             "fillOpacity": 0,
             "gradientMode": "none",
@@ -1409,7 +1358,23 @@
             ]
           }
         },
-        "overrides": []
+        "overrides": [
+          {
+            "matcher": {
+              "id": "byName",
+              "options": "Failure"
+            },
+            "properties": [
+              {
+                "id": "color",
+                "value": {
+                  "fixedColor": "red",
+                  "mode": "fixed"
+                }
+              }
+            ]
+          }
+        ]
       },
       "gridPos": {
         "h": 7,
@@ -1436,8 +1401,8 @@
             "type": "prometheus",
             "uid": "${DS_PROMETHEUS}"
           },
-          "editorMode": "builder",
-          "expr": "ntfy_firebase_published_success",
+          "editorMode": "code",
+          "expr": "rate(ntfy_firebase_published_success{job=\"$job\"}[$rate])",
           "legendFormat": "Success",
           "range": true,
           "refId": "A"
@@ -1447,8 +1412,8 @@
             "type": "prometheus",
             "uid": "${DS_PROMETHEUS}"
           },
-          "editorMode": "builder",
-          "expr": "ntfy_firebase_published_failure",
+          "editorMode": "code",
+          "expr": "rate(ntfy_firebase_published_failure{job=\"$job\"}[$rate])",
           "hide": false,
           "legendFormat": "Failure",
           "range": true,
@@ -1505,15 +1470,27 @@
               {
                 "color": "green",
                 "value": null
-              },
-              {
-                "color": "red",
-                "value": 80
               }
             ]
           }
         },
-        "overrides": []
+        "overrides": [
+          {
+            "matcher": {
+              "id": "byName",
+              "options": "Rejected (HTTP 507)"
+            },
+            "properties": [
+              {
+                "id": "color",
+                "value": {
+                  "fixedColor": "red",
+                  "mode": "fixed"
+                }
+              }
+            ]
+          }
+        ]
       },
       "gridPos": {
         "h": 7,
@@ -1540,8 +1517,8 @@
             "type": "prometheus",
             "uid": "${DS_PROMETHEUS}"
           },
-          "editorMode": "builder",
-          "expr": "ntfy_unifiedpush_published_success",
+          "editorMode": "code",
+          "expr": "rate(ntfy_unifiedpush_published_success{job=\"$job\"}[$rate])",
           "legendFormat": "Success",
           "range": true,
           "refId": "A"
@@ -1551,10 +1528,10 @@
             "type": "prometheus",
             "uid": "${DS_PROMETHEUS}"
           },
-          "editorMode": "builder",
-          "expr": "ntfy_http_requests_total{ntfy_code=\"50701\"}",
+          "editorMode": "code",
+          "expr": "rate(ntfy_http_requests_total{job=\"$job\",http_code=\"507\"}[$rate])",
           "hide": false,
-          "legendFormat": "Rejected",
+          "legendFormat": "Rejected (HTTP 507)",
           "range": true,
           "refId": "B"
         }
@@ -1617,7 +1594,23 @@
             ]
           }
         },
-        "overrides": []
+        "overrides": [
+          {
+            "matcher": {
+              "id": "byName",
+              "options": "Failure"
+            },
+            "properties": [
+              {
+                "id": "color",
+                "value": {
+                  "fixedColor": "red",
+                  "mode": "fixed"
+                }
+              }
+            ]
+          }
+        ]
       },
       "gridPos": {
         "h": 7,
@@ -1644,8 +1637,8 @@
             "type": "prometheus",
             "uid": "${DS_PROMETHEUS}"
           },
-          "editorMode": "builder",
-          "expr": "ntfy_matrix_published_success",
+          "editorMode": "code",
+          "expr": "rate(ntfy_matrix_published_success{job=\"$job\"}[$rate])",
           "legendFormat": "Success",
           "range": true,
           "refId": "A"
@@ -1655,8 +1648,8 @@
             "type": "prometheus",
             "uid": "${DS_PROMETHEUS}"
           },
-          "editorMode": "builder",
-          "expr": "ntfy_matrix_published_failure",
+          "editorMode": "code",
+          "expr": "rate(ntfy_matrix_published_failure{job=\"$job\"}[$rate])",
           "hide": false,
           "legendFormat": "Failure",
           "range": true,
@@ -1721,7 +1714,23 @@
             ]
           }
         },
-        "overrides": []
+        "overrides": [
+          {
+            "matcher": {
+              "id": "byName",
+              "options": "Failure"
+            },
+            "properties": [
+              {
+                "id": "color",
+                "value": {
+                  "fixedColor": "red",
+                  "mode": "fixed"
+                }
+              }
+            ]
+          }
+        ]
       },
       "gridPos": {
         "h": 7,
@@ -1749,8 +1758,8 @@
             "uid": "${DS_PROMETHEUS}"
           },
           "editorMode": "builder",
-          "expr": "ntfy_emails_sent_success",
-          "legendFormat": "Successful",
+          "expr": "ntfy_emails_sent_success{job=\"$job\"}",
+          "legendFormat": "Success",
           "range": true,
           "refId": "A"
         },
@@ -1760,7 +1769,7 @@
             "uid": "${DS_PROMETHEUS}"
           },
           "editorMode": "builder",
-          "expr": "ntfy_emails_sent_failure",
+          "expr": "ntfy_emails_sent_failure{job=\"$job\"}",
           "hide": false,
           "legendFormat": "Failure",
           "range": true,
@@ -1825,7 +1834,23 @@
             ]
           }
         },
-        "overrides": []
+        "overrides": [
+          {
+            "matcher": {
+              "id": "byName",
+              "options": "Failure"
+            },
+            "properties": [
+              {
+                "id": "color",
+                "value": {
+                  "fixedColor": "red",
+                  "mode": "fixed"
+                }
+              }
+            ]
+          }
+        ]
       },
       "gridPos": {
         "h": 7,
@@ -1853,7 +1878,7 @@
             "uid": "${DS_PROMETHEUS}"
           },
           "editorMode": "builder",
-          "expr": "ntfy_emails_received_success",
+          "expr": "ntfy_emails_received_success{job=\"$job\"}",
           "legendFormat": "Success",
           "range": true,
           "refId": "A"
@@ -1864,7 +1889,7 @@
             "uid": "${DS_PROMETHEUS}"
           },
           "editorMode": "builder",
-          "expr": "ntfy_emails_received_failure",
+          "expr": "ntfy_emails_received_failure{job=\"$job\"}",
           "hide": false,
           "legendFormat": "Failure",
           "range": true,
@@ -1958,7 +1983,7 @@
             "uid": "${DS_PROMETHEUS}"
           },
           "editorMode": "builder",
-          "expr": "ntfy_message_publish_duration_ms",
+          "expr": "ntfy_message_publish_duration_ms{job=\"$job\"}",
           "legendFormat": "Duration",
           "range": true,
           "refId": "A"
@@ -2063,8 +2088,8 @@
             "uid": "${DS_PROMETHEUS}"
           },
           "editorMode": "builder",
-          "expr": "go_goroutines{job=\"ntfy\"}",
-          "legendFormat": "__auto",
+          "expr": "go_goroutines{job=\"$job\"}",
+          "legendFormat": "Go routines",
           "range": true,
           "refId": "A"
         }
@@ -2100,7 +2125,8 @@
             "lineWidth": 1,
             "pointSize": 5,
             "scaleDistribution": {
-              "type": "linear"
+              "log": 10,
+              "type": "symlog"
             },
             "showPoints": "auto",
             "spanNulls": false,
@@ -2156,7 +2182,7 @@
             "uid": "${DS_PROMETHEUS}"
           },
           "editorMode": "builder",
-          "expr": "process_open_fds{job=\"ntfy\"}",
+          "expr": "process_open_fds{job=\"$job\"}",
           "legendFormat": "Open",
           "range": true,
           "refId": "A"
@@ -2167,7 +2193,7 @@
             "uid": "${DS_PROMETHEUS}"
           },
           "editorMode": "builder",
-          "expr": "process_max_fds{job=\"ntfy\"}",
+          "expr": "process_max_fds{job=\"$job\"}",
           "hide": false,
           "legendFormat": "Max",
           "range": true,
@@ -2261,8 +2287,8 @@
             "uid": "${DS_PROMETHEUS}"
           },
           "editorMode": "builder",
-          "expr": "process_resident_memory_bytes{job=\"ntfy\"}",
-          "legendFormat": "__auto",
+          "expr": "process_resident_memory_bytes{job=\"$job\"}",
+          "legendFormat": "Resident memory used by ntfy (RSS)",
           "range": true,
           "refId": "A"
         },
@@ -2272,9 +2298,9 @@
             "uid": "${DS_PROMETHEUS}"
           },
           "editorMode": "builder",
-          "expr": "process_virtual_memory_bytes{job=\"ntfy\"}",
+          "expr": "process_virtual_memory_bytes{job=\"$job\"}",
           "hide": false,
-          "legendFormat": "__auto",
+          "legendFormat": "Virtual memory used by ntfy (VSS)",
           "range": true,
           "refId": "B"
         }
@@ -2283,13 +2309,83 @@
       "type": "timeseries"
     }
   ],
-  "refresh": false,
+  "refresh": "10s",
   "revision": 1,
   "schemaVersion": 38,
   "style": "dark",
   "tags": [],
   "templating": {
-    "list": []
+    "list": [
+      {
+        "current": {},
+        "datasource": {
+          "type": "prometheus",
+          "uid": "${DS_PROMETHEUS}"
+        },
+        "definition": "label_values(ntfy_visitors_total, job)",
+        "hide": 0,
+        "includeAll": false,
+        "label": "Job",
+        "multi": false,
+        "name": "job",
+        "options": [],
+        "query": {
+          "query": "label_values(ntfy_visitors_total, job)",
+          "refId": "StandardVariableQuery"
+        },
+        "refresh": 1,
+        "regex": "",
+        "skipUrlSync": false,
+        "sort": 0,
+        "type": "query"
+      },
+      {
+        "auto": false,
+        "auto_count": 30,
+        "auto_min": "10s",
+        "current": {
+          "selected": false,
+          "text": "30m",
+          "value": "30m"
+        },
+        "description": "Average per-second rates over values from this time span",
+        "hide": 0,
+        "label": "Rate",
+        "name": "rate",
+        "options": [
+          {
+            "selected": false,
+            "text": "1m",
+            "value": "1m"
+          },
+          {
+            "selected": false,
+            "text": "5m",
+            "value": "5m"
+          },
+          {
+            "selected": false,
+            "text": "10m",
+            "value": "10m"
+          },
+          {
+            "selected": true,
+            "text": "30m",
+            "value": "30m"
+          },
+          {
+            "selected": false,
+            "text": "1h",
+            "value": "1h"
+          }
+        ],
+        "query": "1m,5m,10m,30m,1h",
+        "queryValue": "",
+        "refresh": 2,
+        "skipUrlSync": false,
+        "type": "interval"
+      }
+    ]
   },
   "time": {
     "from": "now-24h",
@@ -2299,6 +2395,6 @@
   "timezone": "",
   "title": "ntfy App",
   "uid": "TO6HgexVz",
-  "version": 11,
+  "version": 24,
   "weekStart": ""
 }

mkdocs.yml

@@ -93,6 +93,7 @@ nav:
   - "Integrations + projects": integrations.md
   - "Release notes": releases.md
   - "Emojis 🥳 🎉": emojis.md
+  - "Troubleshooting": troubleshooting.md
   - "Known issues": known-issues.md
   - "Deprecation notices": deprecations.md
   - "Development": develop.md
